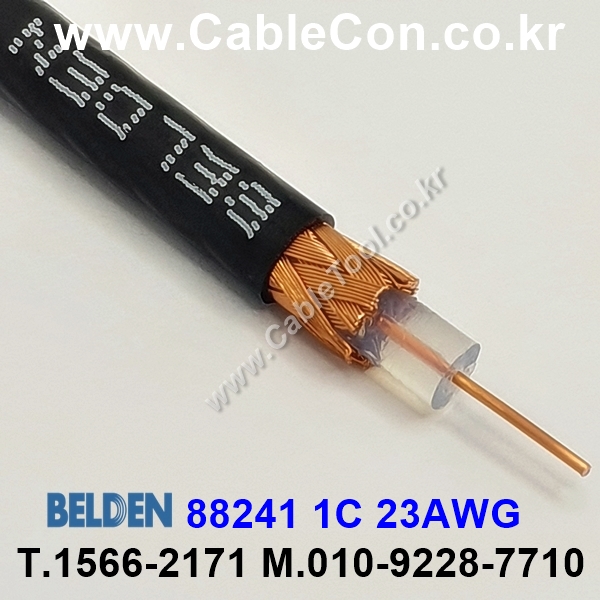

BELDEN 88241, RG59,  Analog Video, FEP Jacket, CMP
선재: 1C x 23(Solid)AWG
콘덕터 재질: BCCS - Bare Copper Covered Steel
절연체 재질: FEP - Fluorinated Ethylene Propylene

쉴드 타입:
Braid 1) Bare Copper (BC) / 차폐율: 95%

외피 재질: FEP - Fluorinated Ethylene Propylene

사용환경:
RG59, 고온용 Analog Video 동축 케이블

표준 및 준수항목:
RG Type: 59/U
Nom. Impedence: 75 Ohm
Voltage Rating: 1700 V RMS (Non-UL), 300 V RMS (UL)
Operating Temperature: -70°C to +200°C
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
CPR Euroclass: Eca
Environmental Space: Indoor/Outdoor, Burial
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes
UL Flammability: NFPA 262
CSA Flammability: FT6
IEC Flammability: IEC 60332-1-2
Non-Plenum Number: 8241

벨덴 품번 정보:

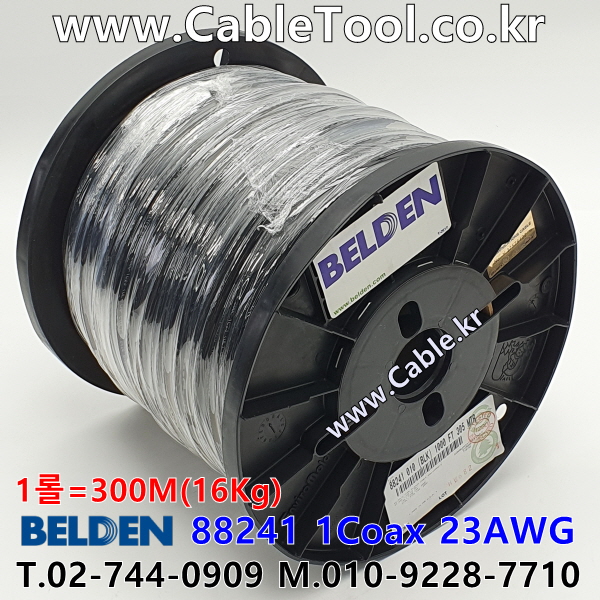

BELDEN 88241 010500 (Black, 150M)
BELDEN 88241 0101000 (Black, 300M)
