BELDEN 9463, 2C x 20(7x28)AWG 벨덴, Blue Hose? for Data Highway Plus (DH+), Blue PVC Outer Jacket, CL2, CM
 글쓴이 : 사양서보기
조회 : 6,565
   http://www.beldenkorea.com/pdf/usa/18.15-18.16.PDF [888]
   https://catalog.belden.com/techdata/EN/9463_techdata.pdf [812]

BELDEN 카다로그 바로가기:  www.cable.kr
BELDEN 쇼핑몰 바로가기:  www.cabletool.kr


BELDEN 벨덴 AlphaWire 알파와이어 한국총판 케이블콘㈜ & 케이블툴(주)
☎.02-744-0909  /  M.010-육육일이-7710 (벨덴 기술 문의)


☎.02-744-1575  /  M.010-삼칠삼이-7710 (충청, 전라, 경상)
☎.02-744-1576  /  M.010-육삼칠칠-7710 (서울 견적 재고)

☎.02-744-1577  /  M.010-구이이삼-7710 (경기, 인천, 강원)
☎.02-744-1578  /  M.010-구이이팔-7710 (해외, 제주 문의)

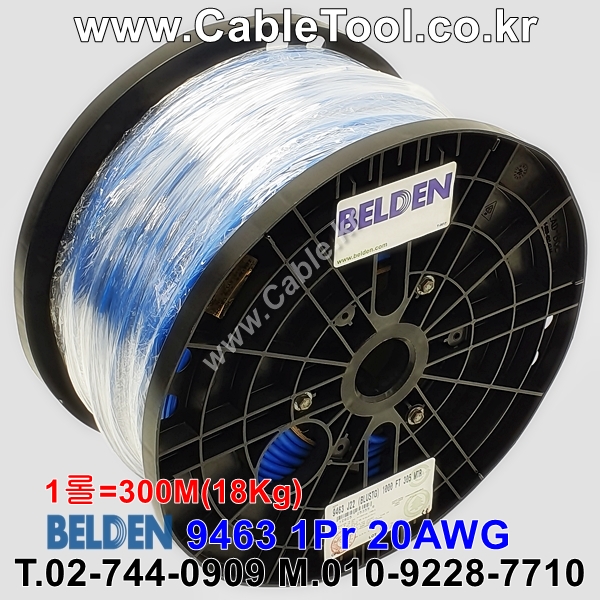

BELDEN 9463, Blue Hose? for Data Highway Plus (DH+), Blue PVC Outer Jacket, CL2, CM
Allen Bradley P.N: 1770-CD

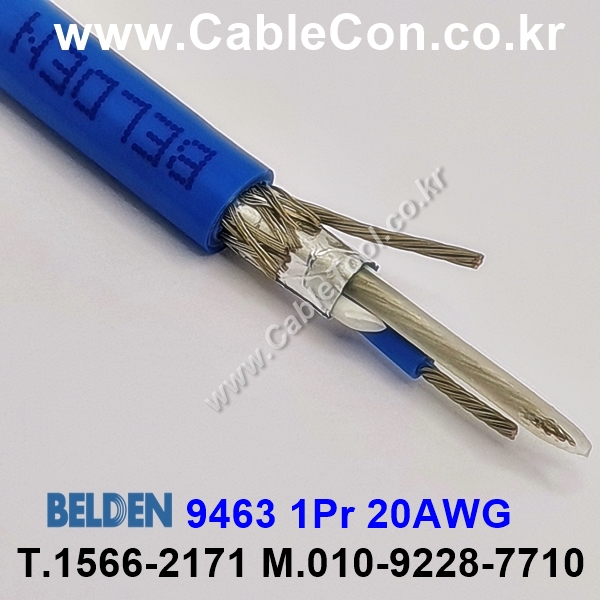

선재: 2C x 20(7x28)AWG
콘덕터 재질: TC - Tinned Copper Conductor
절연체 재질: PE – Polyethylene Insulation
색상 코드: Clear & Blue

쉴드 타입:
Tape 1) 전체 벨드호일(Beldfoil?)/ Bi-Laminate (Alum+Poly) 차폐 (차폐율: 100%)
Braid 2) 주석도금 편조차폐(차폐율: 55%)
드레인와이어: 20(7x28)AWG, TC
외피 재질: PVC - Polyvinyl Chloride Jacket

사용환경:
BELDEN 9463, P-7K-SC-182141, Allen Bradley P/N 1770-CD, DH, DH+, Data Highway communication interface between PLC processors 등

표준 및 준수항목:
UL Voltage Rating: 300 V (CM, CL2)
Operating  Temperature: -40°C to +80°C
Environmental Suitability: Indoor, Sunlight Resistance
Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2
NEC / UL Compliance: Article 725, Article 800, CM, CL2
AWM Compliance: 2464
CEC / C(UL) Compliance: CM
CPR Euroclass: Eca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
Other Standard Compliance(s): P-7K-SC-182141, Allen Bradley P/N 1770-CD
